Update! MSFS2020 - MSFS HudBar Plugin - V.0.62

Display essential Information as Bar or Tile at any side of the primary screen or as Window anywhere you like

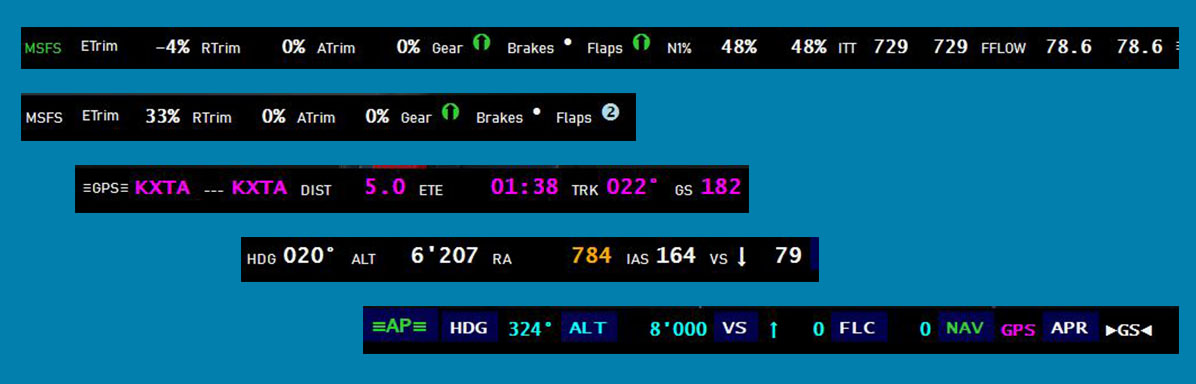

• Displays essential aircraft and flight information as Bar or Tile
• Supports 1 and 2 engine aircrafts (Prop/Engine RPM, FuelFlow for each)
• Provides 5 different content profiles which are fully configurable
• The pilot can directly activate Autopilot commands
• Auto Elevator Trim on a click
• Bottom/Top Bars work best with wide screen monitors

Best is to start MSFS first, then the Bar

• Start MSFS2020 first and once the Main Menu is shown
• Start FS20_HudBar.exe
• It attempts to connect to the Flight simulator in 5 sec intervals, but shows an error message while it cannot connect
• Note: the shown values are a bit meaningless until the aircraft and flight is live Also note that the bar is shown on the ++PRIMARY monitor++ at the bottom of the screen

V 0.62

• - Fix Allow 2..6 digit SimBrief Pilot ID (no clear doc what it is found...)
• - Internal Complete code comments for public items

V 0.61

• - Add SimBrief support (loading docs into Shelf, show Flightplan on map)
• - Add MSFS PLN support (loading table doc into Shelf, show Flightplan on map)
• - Add MSFS FLT support (loading table doc into Shelf, show Flightplan on map)
• - Add Wind Arrow for tracked aircraft
• - Add Track in aircraft data in Map
• - Add Allow True and Mag toggle when clicking Heading or Track in Map
• - Add Toggle Av/SI units when clicking data labels in Map (alt, speed, vs )
• - Add XF range to map (Zoom level 7)
• - Update Support GIF images in Shelf
• - Fix AppSettings of Aircraft Range and Track was mismatched
• - Update QuickGuide

V 0.60

• - Add PositiveRate Callout (criteria see QuickGuide)
• - Add Water Ballast Gauges for Gliders (quantity and flow)
• - Update FlightBag Map handling improved
• - Update DataLoader fix reading of airport names (file changed in SU11)
• - Update QuickGuide

V 0.57

• Fix FacilityDataLoader for Steam and other issues #12

V 0.56

• - Add Color Config for Labels and Values
• - Add Audio Output Device selector in Configuration Dialog
• - Add SimOnGround indication (RA Label turns active - green - when on ground)
• - Add RAv voice out - touchdown indication
• - Add Re-Order command in the Config context menu for each column
• - Add Netto Variometer items (available when supported by the acft)
• - Add MacCrady Speed and Setting (available when supported by the acft)
• - Add 'Omit for the future' to the Database Check
• - Update Use SU11 Glider TE variometer when supported
• - Update Spoiler voice out (up-> retracted; down-> out)
• - Update Convert HudBar Settings to new Settings Concept
• - Update Appearance Name for Dark is now Inverse
• - SU11 compatibility checks
• - Fix Facility Data Loader issue found in SU11
• - Update QuickGuides

V 0.50-B47

• - Add Control Surfaces Item as Graphics
• - SU9 Compatibility Check
• - Update QuickGuide

V 0.33

• - Update ATC Airport handling in case no ATC flightplan is given
• - Update step VS items in 20 fpm steps (G1000 would be 50)
• - Update FuelQuantities get Amber readings if unbalanced more than 15% of total Capacity
• - Fix some more inconsistencies
• - Update QuickGuide

V 0.31-B25

• - Add Config Switch to enable FLT handling/save (default off)
• - Add ATC assigned/expected ALT, HDG and next WYP item
• - Add Complete flightplan as tooltip on ATC item (the ATC assumed FP)
• - Add FLT AutoSave if FLT handling is enabled (5Min interval, 12 saves max)
• - Update Add FltLib as part of this project
• - Update Complete rework of FLT File handling, should no longer interfere with SIM AutoSave in missions
• - Fix Issues re. FLT file decoding causing exceptions due to unexpected states/contents
• - Update QuickGuide

* Right Click the Bar and choose from the pop up menu * To select a Profile (1..5 - your names) * To Configure.. to check or uncheck the items to be shown * To Exit and stop the program

* The Hud can be shown as Bar or Tile (to be changed in Configuration, default is Bar at the Bottom of the screen) * Bar: a full width window attached to the defined side of the screen * Tile: a window sized to accommodate the selected items A Tile can be moved freely along the side where it is attached to

Note: the previous Splitter is no longer available – use Tile and move the tile wherever you want.

Autopilot commands that accept mouse clicks to toggle have a dark blue background and show a hand while hovering the active area

AP,HDG,ALT,VS,FLC,NAV and APR can be directly toggled

BARO set to current (keyboard B button)

* ETrim - Elevator Trim: clicking the ETrim label will activate the Auto Elevator Trim module for about 20 seconds. It will display ETrim in green color while active - clicking the active module again will switch it off Note: the module controls the Elevator Trim in a way to level the aircraft towards zero vertical speed. It may or may not work to your expectation.. so use it only if you feel comfortable with.

* Calculated fields when a "Next Waypoint" is available: * Estimate VS to WYP@ALT (WP-VS): Calculated VS to reach the next Waypoint at the proposed Altitude with the current GS and DIST (ALTP when purple or Setting Alt when blue) * Estimate ALT@WYP (WP-ALT): Calculated Altitude at next Waypoint using the actual GS, VS and DIST
